Description

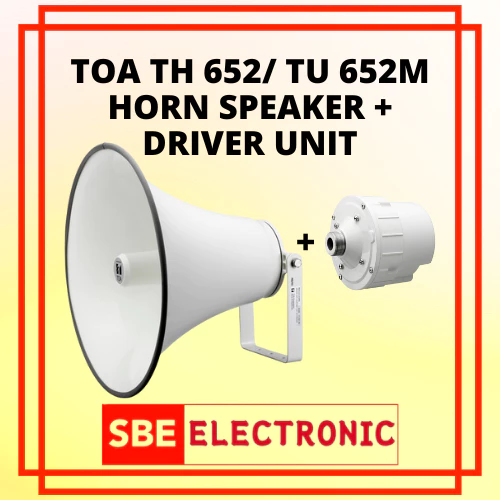

TH-652 Horn Speaker
TH-652 is a speaker horn to be use in combination with an optional driver unit. The powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.
Applicable Drivers: TU-632, TU-632M, TU-652, TU-652M
Sound Pressure Level: 110 dB (1 W, 1 m) (When operated with a driver.)
Frequency Response: 200 Hz – 6,000 Hz (When operated with a driver.)
Dust/Water Protection: IP65 (When operated with a driver.)
Driver Coupling: 1 – 3/8 18 threads (inch screw)
Operating Temperature: -20 °C to +55 °C (must be free from dew condensation)
Finish:
-Horn flare and flange: Aluminum, White, powder coating
-Reflector horn: HIPS, White
-Bracket: Steel, White, powder coating
-Screws and bolts: Stainless steel
Dimensions: Φ500 × 357 (D) mm
Weight: 2.7 kg
********************

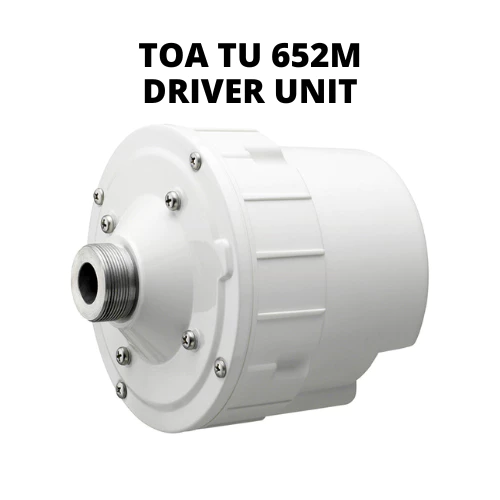

TOA TU-652M DRIVER UNIT
The TU-652M is a highly intelligible driver unit suited to public address announcement applications. The driver unit is used in combination with a suitable horn (optional). Powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.
Applicable Horns: TH-652
Rated Input: 50 W
Line Voltage: 100 V line or 70 V line
Rated Impedance 100 V line: 200 Ω (50 W), 330 Ω (30 W), 670 Ω (15 W)
70 V line: 100 Ω (50 W), 200 Ω (25 W), 330 Ω (15 W), 670 Ω (7.5 W)
Output Sound Pressure Level: 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response: 150 Hz – 6,000 Hz (When operated with JIS C 5504 standard horn.)
IP Code: IP65 (When a driver is operated with a horn.)
Horn Coupling: 1 – 3/8 18 threads (inch screw)
Polarity: Hot: Black, Com: White
Operating Temperature: -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
Finish:
-Upper Cover: Aluminum, White, powder coating
-Unit Case: HIPS. White
-Screws: Stainless steel
-Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24″) in diameter, 450 mm (17.72″) in length), White
Dimensions: Φ139 × 149 (D) mm (Φ5.47″ × 5.87″)
Weight: 2.7 kg (5.95 lb)
